| Plaats van herkomst: | Zhejiang, China |
|---|---|
| Merknaam: | YADE |
| Modelnummer: | hydraulische slangflens |
| Min. bestelaantal: | 100 Stukken |
| Prijs: | be negotiation |
| Productnaam: | hydraulische slang flanve | model: | SAE-flens |
|---|---|---|---|
| Materiaal: | roestvrij staal of koolstofstaal | Geschikt middel: | water/olie/gas |
| Technieken: | heet smeed, CNC machine | Oppervlaktebehandeling: | Driewaardig geplateerd zink |
| Toepassing: | de industriegraafwerktuig | Assembleer manier: | golfplaat, slot |
| Grootte: | 1/4“ - 2“ | Type: | hydraulische filters |
| Pakkettype: | Neutraal de uitvoerpakket: kartondoos met plastic zak toen in woodemplastiek | ||
| Hoog licht: | CNC de Hydraulische Montage van de Slangflens,SAE Hydraulic Hose Flange Fitting,SAE-flens hydraulische montage |
||
Productnaam

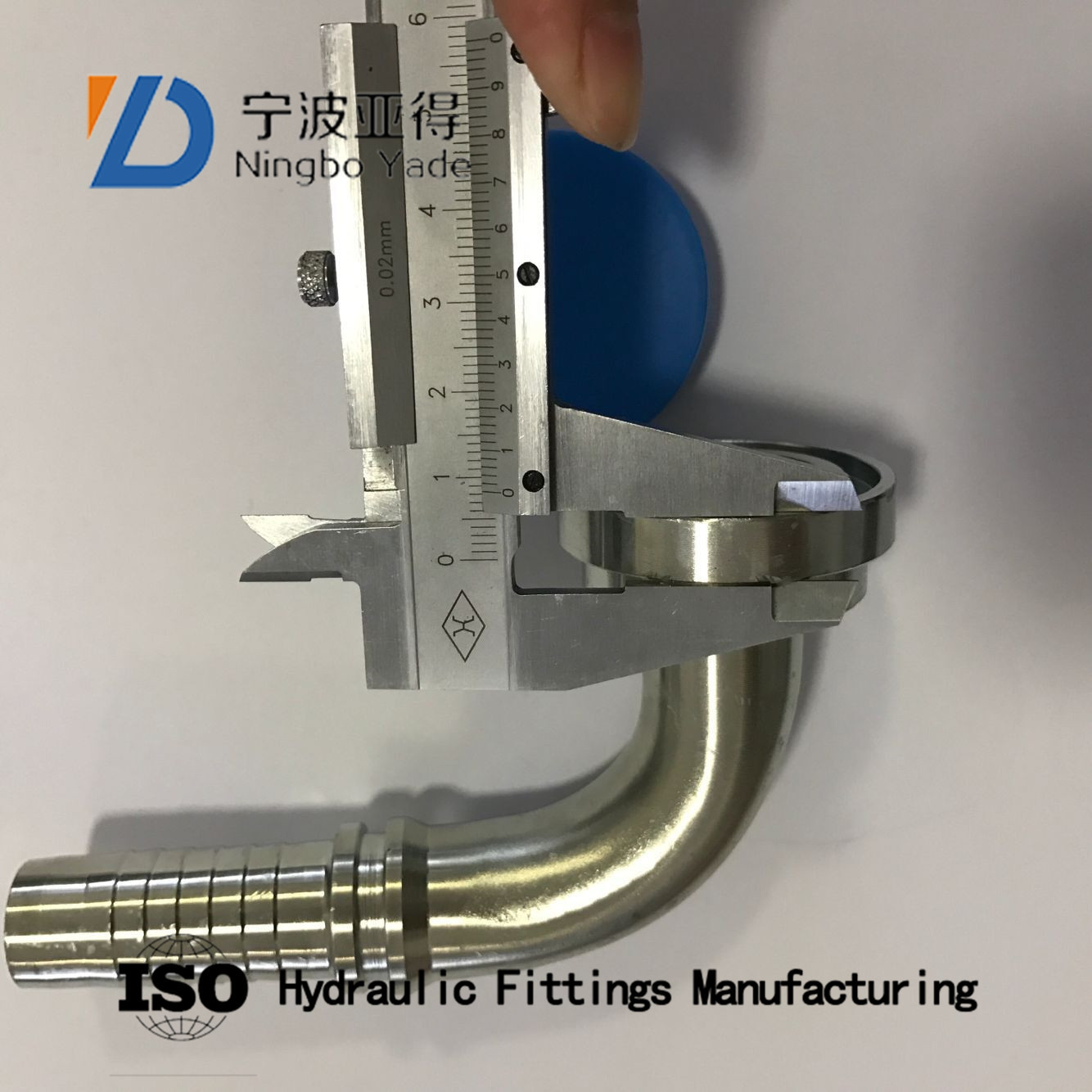

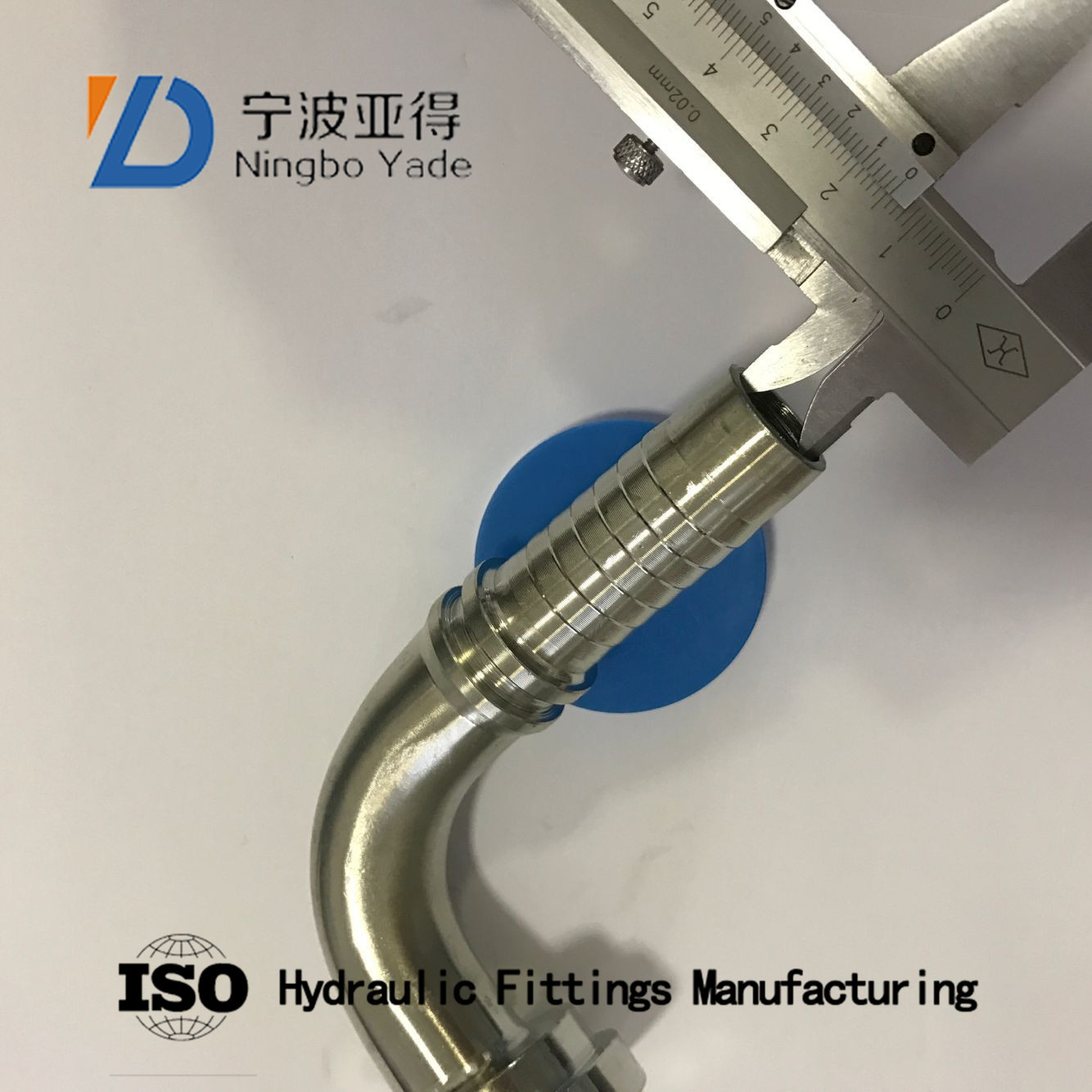

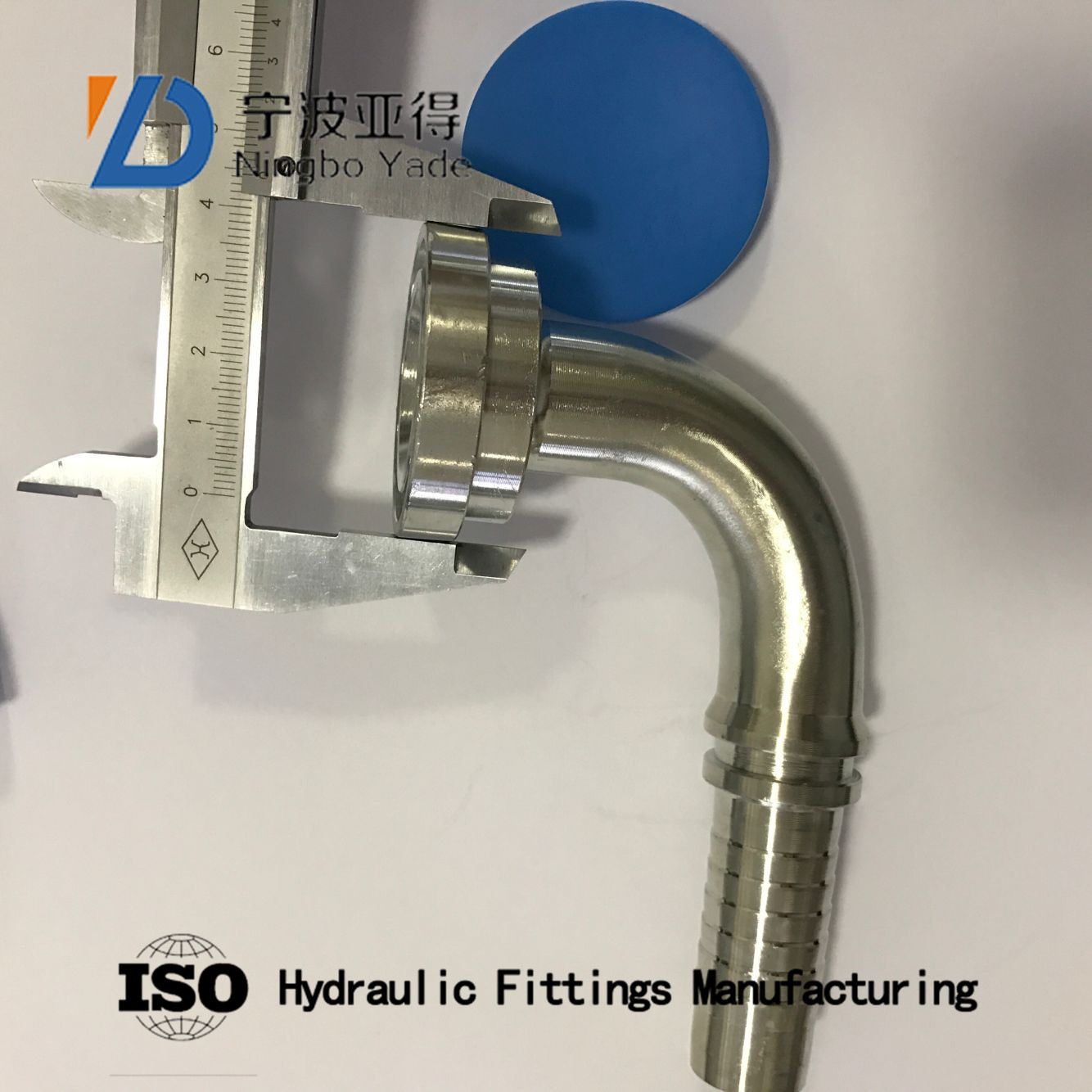

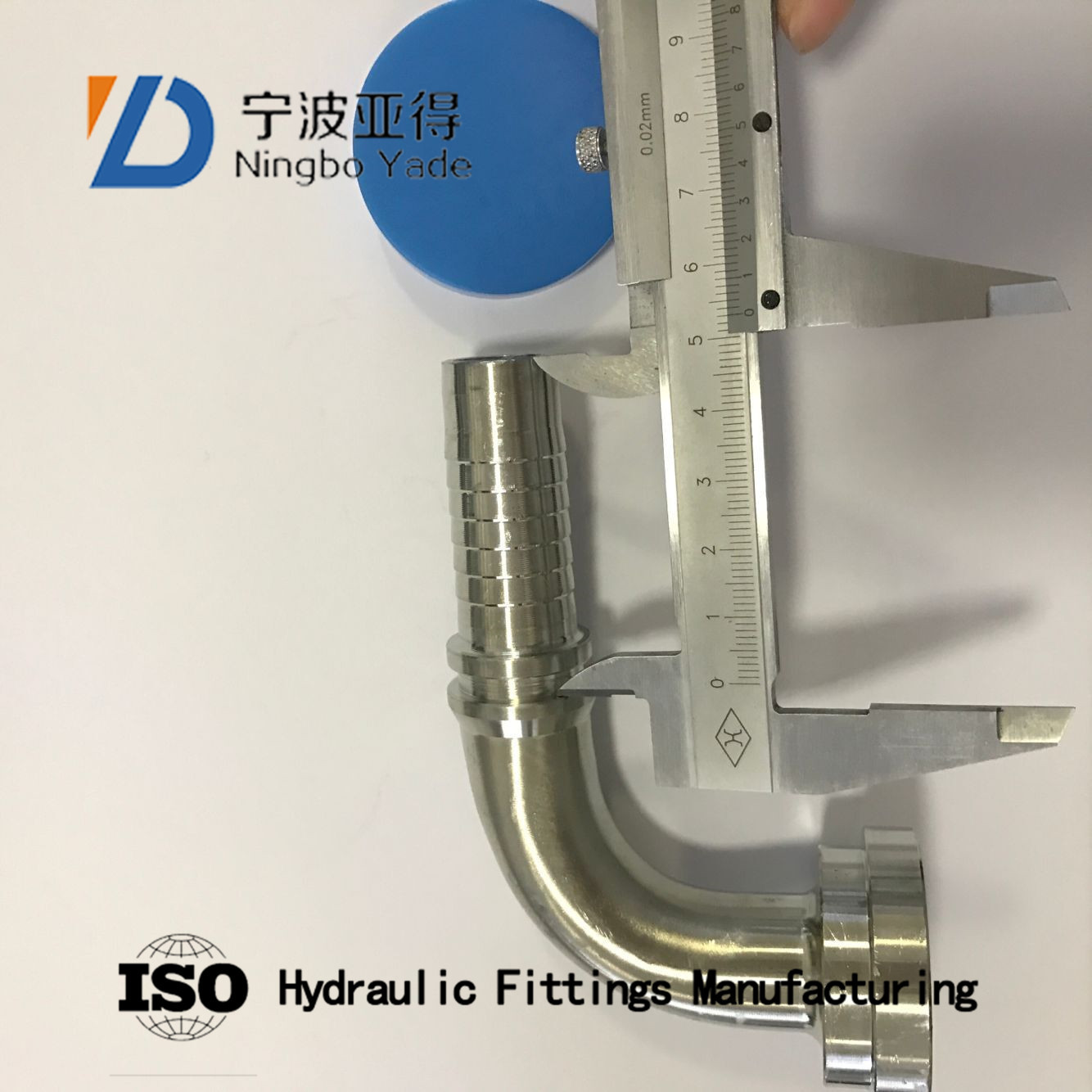

87392 Flens van de de Vervaardigings Hydraulische Slang van 90 Elleboog de Hydraulische SAE Flange Fitting CNC
| DE SLANG DROEG | AFMETINGEN | |||||||
| ARTIKELNUMMER. | FLENSgrootte | DN | STREEPJE | A | C | D | H | L |
| 87392-08-08 | 1/2“ | 12 | 8 | 41 | 30.2 | 24 | 47 | 6.73 |
| 87392-12-08 | 3/4“ | 12 | 8 | 41 | 38.1 | 31.7 | 48 | 6.73 |
| 87392-12-10 | 3/4“ | 16 | 10 | 56.5 | 38.1 | 31.7 | 52.5 | 6.73 |
| 87392-12-12 | 3/4“ | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
| 87392-12-12 (H100) | 3/4“ | 20 | 12 | 65.5 | 38.1 | 31.7 | 100 | 6.73 |
| 87392-12-12 (H127) | 3/4“ | 20 | 12 | 65.5 | 38.1 | 31.7 | 127 | 6.73 |
| 87392-12-12 (H150) | 3/4“ | 20 | 12 | 65.5 | 38.1 | 31.7 | 150 | 6.73 |
| 87392-12-16 | 3/4“ | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
| 87392-16-12 | 1“ | 20 | 12 | 66.2 | 44.4 | 38 | 62 | 8 |
| 87392-16-16 | 1“ | 25 | 16 | 78 | 44.4 | 38 | 67.5 | 8 |
| 87392-16-16 (H100) | 1“ | 25 | 16 | 76.7 | 44.4 | 38 | 100 | 8 |
| 87392-16-16 (H127) | 1“ | 25 | 16 | 76.7 | 44.4 | 38 | 127 | 8 |
| 87392-16-16 (H150) | 1“ | 25 | 16 | 76.7 | 44.4 | 38 | 150 | 8 |
| 87392-16-20 | 1“ | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
| 87392-20-16 | 1.1/4“ | 25 | 16 | 78 | 50.8 | 43 | 67.5 | 8 |
| 87392-20-20 | 1.1/4“ | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
| 87392-20-20 (H100) | 1.1/4“ | 32 | 20 | 91.5 | 50.8 | 43 | 100 | 8 |
| 87392-20-20 (H127) | 1.1/4“ | 32 | 20 | 91.5 | 50.8 | 43 | 127 | 8 |
| 87392-20-20 (H150) | 1.1/4“ | 32 | 20 | 91.5 | 50.8 | 43 | 150 | 8 |
| 87392-20-24 | 1.1/4“ | 40 | 24 | 108.5 | 50.8 | 43 | 78.5 | 8 |
| 87392-24-20 | 1.1/2“ | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 |
| 87392-24-24 | 1.1/2“ | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
| 87392-24-24 (H127) | 1.1/2“ | 40 | 24 | 109.4 | 60.3 | 50 | 127 | 8 |
| 87392-32-24 | 2“ | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
| 87392-32-32 | 2“ | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
| 87392-40-32 | 2.1/2“ | 50 | 32 | 131.8 | 84.1 | 74.4 | 114.3 | 9.53 |
